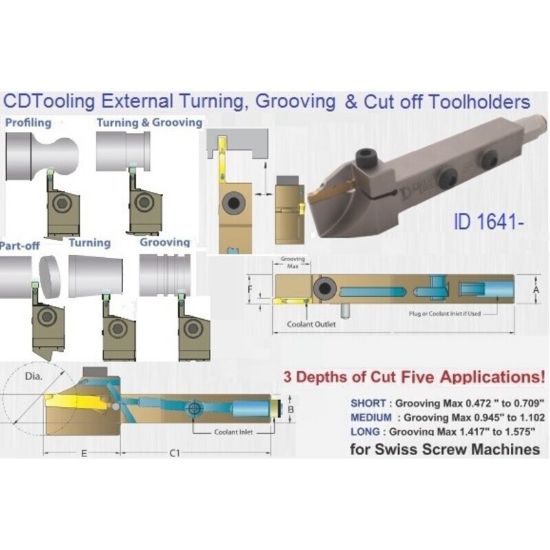

Picture of DORIAN ADDN-TFL-1010-H20-06 Stick Tool Clamp Down Square 0.393 Shank 4.210 OAL

DORIAN ADDN-TFL-1010-H20-06 Stick Tool Clamp Down Square 0.393 Shank 4.210 OAL

ANSI: ADDN-TFL-1010-H20-06

ISO: ADDN-TFL-1010-H20-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR61001
Delivery date: 3-5 days
$170.66
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for double sided part-off inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Additional Key Information 2 Stick Tool
Additional Key Information 3 Clamp Down
Package Size 1
Insert Application General Purpose
Additional Key Information 4 Swiss
Application Swiss, Ext.Grooving, Parting
Shipping State Texas
Sold by Pieces 1
Additional Key Information 1 Cut Off
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Insert Size Ic 20
Machine Side STICK TOOL0.3937
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Overall Len 4.2100 106.93MM
Tool Over Hang 1.2600
Tool Width 0.3940
Cutting & Machining Properties
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
Insert Style DN
Coolant Thru Yes
