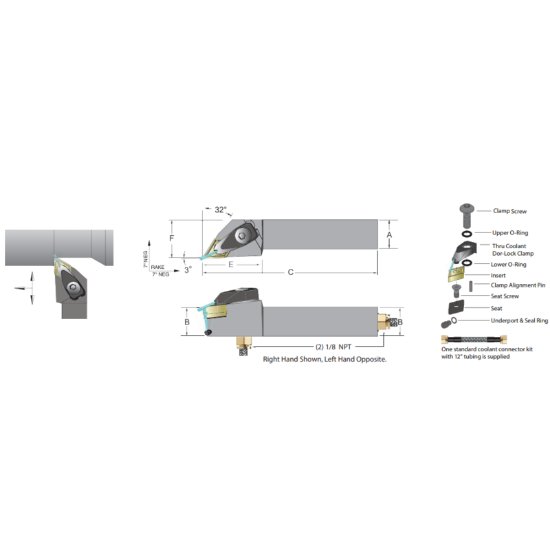

Picture of Dorian ADDJNR-20-4D 55.0° Square 1.250 Shank 6.000 OAL

Dorian ADDJNR-20-4D 55.0° Square 1.250 Shank 6.000 OAL

Part Number: DOR53022 ISO: ADDJNR-20-4D ANSI:ADDJNR-20-4D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038052
Vendor: Sussex Tool and Supply
$215.68

Description

DORIAN 73310153022 55.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Right Hand
Inter/Extern External
Coolant Type Through
Insert Screw SM-S4
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD4
Seat Screw JD-432
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12 "43"
Tool Width 1.2500
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
