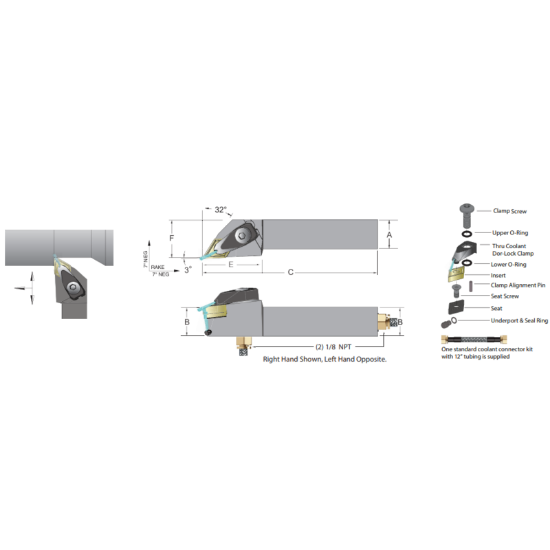

Picture of DORIAN ADDJNR-16-4D 55.0° Square 1.000 Shank 6.000 OAL

DORIAN ADDJNR-16-4D 55.0° Square 1.000 Shank 6.000 OAL

ANSI: ADDJNR-16-4D

ISO: ADDJNR-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53020
Delivery date: 3-5 days
$239.31
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Neg55°Jet Stream Toolholder RH

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Shipping State Texas
Insert/Tool Tool
Additional Key Information 2 55.0°
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Uncategorized
Made In USA No
Dimensional Specifications
Lead Angle 93°
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Machine Side STICK TOOL1.0000
Clearance Angle 27.0°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Coolant Thru Yes
Cool Sply Type Through
Inter/Extern External
Fasteners & Connectors
Seat Screw JD-432
Insert Screw SM-S4
Clamp/Wedge JSLC-HPD4
Clamp Screw JSCS-04
