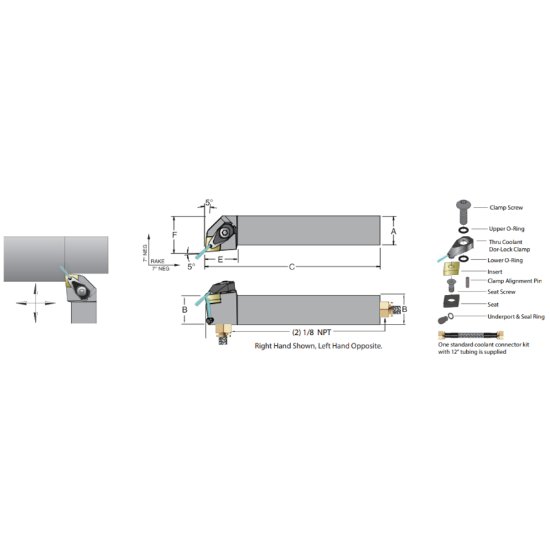

Picture of Dorian ADCLNL-20-4D 80.0° Square 1.250 Shank 6.000 OAL

Dorian ADCLNL-20-4D 80.0° Square 1.250 Shank 6.000 OAL

Part Number: DOR53005 ISO: ADCLNL-20-4D ANSI:ADCLNL-20-4D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038034
Vendor: Sussex Tool and Supply
$201.30

Description

DORIAN 73310153005 80.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Coolant Type Through
Insert Screw SM-S4
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Seat Screw JC-432
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12 "43"
Tool Width 1.2500
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 80.0°
