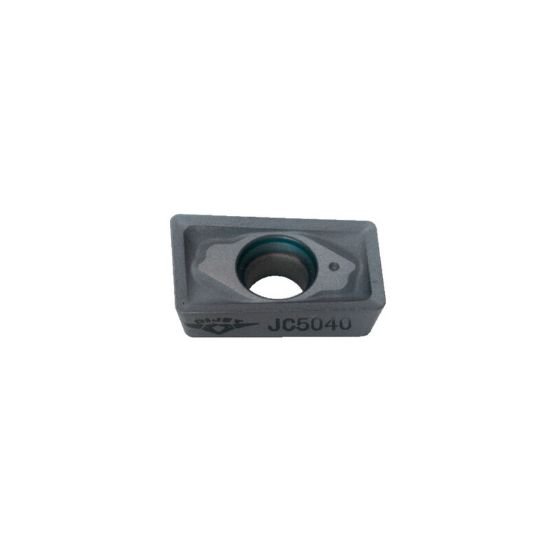

Picture of Dijet ZPMT160420L JC5040 Milling Insert Paralelagram 0.078 Corner Radius Carbide PVD Special

Dijet ZPMT160420L JC5040 Milling Insert Paralelagram 0.078 Corner Radius Carbide PVD Special

Part Number: DIJZPMT160420L JC5040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004215
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

Carbide parallelogram milling insert with 90 degree corner radius. PVD coating grade JC5040. Brand DIJET. Alternate Description ZPMT160420L JC5040.

Key Details

Materials & Finish

  • Coating: PVD Special
  • Tool Material: Carbide
  • Grade: JC5040

Grades & Coatings

  • Alternate Description: DIJET ZPMT160420L JC5040 Parallelogram 90 DEGREE Positive PVD Special ZPMT160420L JC5040 ZPMT160420L JC5040

Other Details

  • Brand: DIJET
  • Shipping State: MICHIGAN
  • Made In Usa: No

Technical Overview

What It Does

Milling insert performs cutting operations with parallel edges. It features 0.078 corner radius for precise edge cutting. Used in machining with carbide tool material.

Composition

Carbide tool material with PVD Special coating. Grade JC5040. Parallelogram shape with 90 degree angle.

Typical Uses

Milling operations in metal cutting. Applied in parallel edge cutting tasks. Used with standard milling machines.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Coating PVD Special
Insert Or Tool Insert
Insert Application Roughing, Semi Finishing
Corner Radius 0.0780 1.98MM
Insert Style ZD
Insert Shape Or Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size (IC) 16
Grade JC5040
Insert Fits Parallelogram
