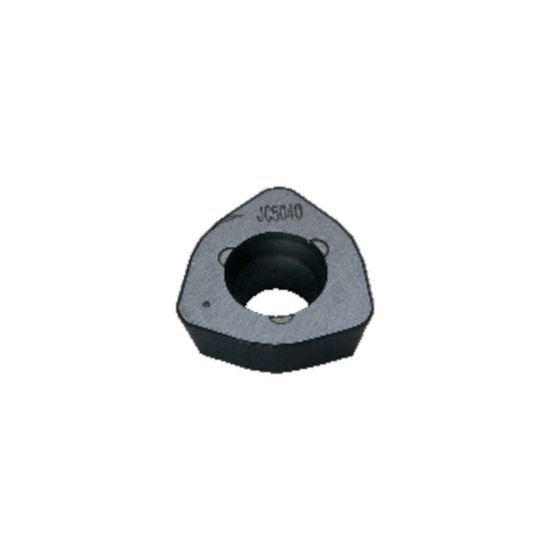

Picture of Dijet WDMW050316ZTR JC5040 Milling Insert Trigon 0.063 Corner Radius Carbide PVD Special

Dijet WDMW050316ZTR JC5040 Milling Insert Trigon 0.063 Corner Radius Carbide PVD Special

Part Number: DIJWDMW050316ZTR JC5040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004302
Vendor: Sussex Tool and Supply
$8.23
This product has a minimum quantity of 10

Carbide trigon milling insert with PVD Special coating grade JC5040. Brand: DIJET. Alternate Description: DIJET WDMW050316ZTR JC5040 Trigon Insert Positive PVD Special WDMW050316ZTR JC5040. Made In Usa: No.

Key Details

Materials & Finish

  • Coating: PVD Special
  • Tool Material: Carbide
  • Grade: JC5040

Grades & Coatings

  • Alternate Description: DIJET WDMW050316ZTR JC5040 Trigon Insert Positive PVD Special WDMW050316ZTR JC5040 WDMW050316ZTR JC5040

Other Details

  • Brand: DIJET
  • Shipping State: MICHIGAN
  • Made In Usa: No

Technical Overview

What It Does

Milling insert performs cutting functions in machining operations. It features trigon corner geometry for precise edge support. Designed for use in cutting tools with carbide material and PVD coating.

Composition

Carbide tool material with PVD Special coating. Grade JC5040. Trigon corner radius 0.063 inches.

Typical Uses

Used in milling operations. Applied in cutting tools requiring high durability. Suitable for precision machining tasks with carbide inserts.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Coating PVD Special
Insert Or Tool Insert
Insert Application Roughing
Corner Radius 0.0630 1.60MM
Insert Style WD
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Positive
Insert Size (IC) 5
Grade JC5040
Insert Fits Trigon
Insert Screw DWS-306H
