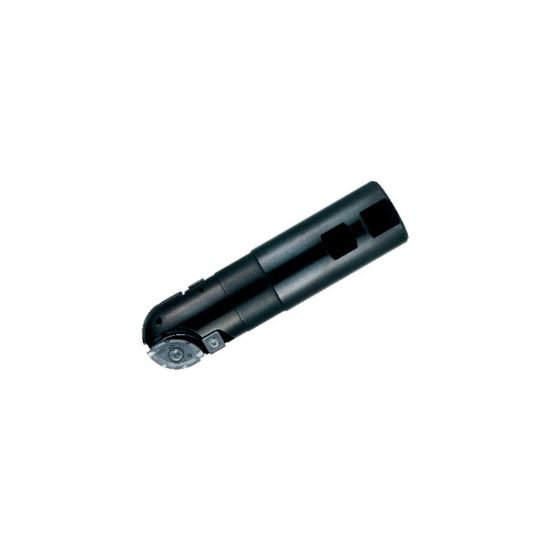

Picture of Dijet SWB-2075-6 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 1.000 Shank 6.030 OAL 2 Flute

Dijet SWB-2075-6 Milling Cutter Ball Mill 0.750 Cutter Diameter Weldon 1.000 Shank 6.030 OAL 2 Flute

Part Number: DIJSWB-2075-6 0.750 x 1.000 x 1.140 x 6.030 ISO: SWB-2075-6 ANSI:SWB-2075-6
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1004114

Description

DIJET SWB-2075-6 Ball Ball Mill End Mill Weldon 1.0000 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Ball Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Insert Style SW, ZC
Insert Shape/Cutter Pocket Shape Ball
Insert Type Positive
Insert Screw DWS-307H, ESW-206
Dimensions & Sizing
Overall Length 6.0300 153.16MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.1400 28.96MM
Insert Size Ic 20
Neck Length 3.7500 95.25MM
Performance & Capacity
Depth Of Cut Max 1.1400
Materials & Finish
Tool Material Steel
