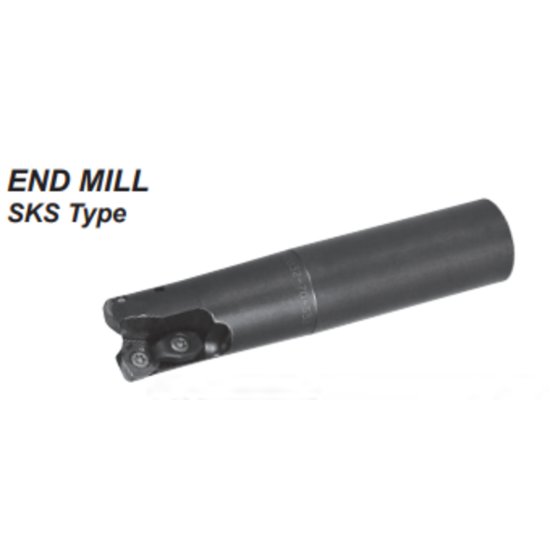

Picture of Dijet SKS-3150-5.0-S150 Milling Cutter Weldon 1.500 Shank 10.00 OAL 3 Flute

Dijet SKS-3150-5.0-S150 Milling Cutter Weldon 1.500 Shank 10.00 OAL 3 Flute

Part Number: DIJSKS-3150-5.0-S150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004273
Vendor: Sussex Tool and Supply
$0.00

DIJET end mill with 1.500 shank Weldon connection. Three flute, 10.00 oal steel tool. Toolpost connection type: Weldon. Made in USA: No.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.5000

Grades & Coatings

  • Alternate Description: DIJET SKS-3150-5.0-S150 Trigon Feed Mill End Mill Weldon 1.5000 Positive SKS-3150-5.0-S150 SKS-3150-5.0-S150

Other Details

  • Brand: DIJET
  • Shipping State: MICHIGAN
  • Made In Usa: No
  • Type Of Tool: End Mill

Technical Overview

What It Does

Mills with 3 flute design. Used in end milling operations. Fits Weldon 1.5000 toolpost connection.

Composition

Made of steel. Tool material is steel. Not specified.

Typical Uses

Used in milling tasks. Operates on machine toolpost. Suitable for standard end milling.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Indexable Feed Mill
Made In USA No
Tool Material Steel
Machine Side (Toolpost) WELDON1.5000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 10.0000 254.00MM
Shank Or Pilot Diameter 1.5000 38.10MM - 1-1/2
Mach Side Connection Size 1.5000 38.10MM - 1-1/2
Flutes Or Inserts 3
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style WD
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Positive
Insert Size (IC) 8
Depth Of Cut Max 0.0790
Insert Screw DSW-4510H
