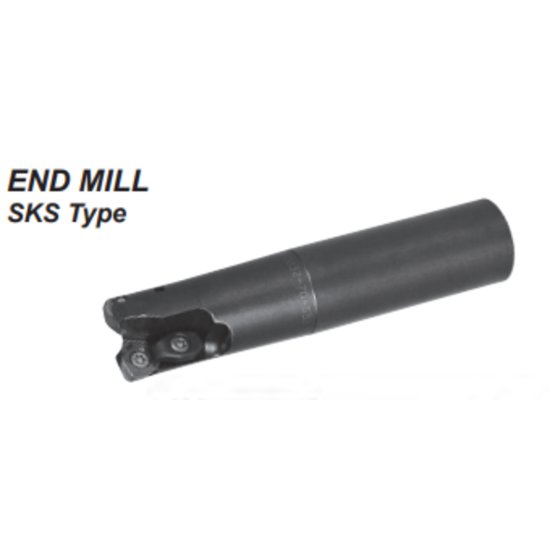

Picture of Dijet SKS-2100-6.5-S100 Milling Cutter Weldon 1.000 Shank 10.00 OAL 2 Flute

Dijet SKS-2100-6.5-S100 Milling Cutter Weldon 1.000 Shank 10.00 OAL 2 Flute

Part Number: DIJSKS-2100-6.5-S100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004265
Vendor: Sussex Tool and Supply
$289.64

Dijet end mill with 1.000 weldon shank. Two flute steel tool for milling. Weldon 1.0000 connection. Made in Usa: No.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Weldon
  • Machine Side (Toolpost): WELDON1.0000

Grades & Coatings

  • Alternate Description: DIJET SKS-2100-6.5-S100 Trigon Feed Mill End Mill Weldon 1.0000 Positive SKS-2100-6.5-S100 SKS-2100-6.5-S100

Other Details

  • Brand: DIJET
  • Shipping State: MICHIGAN
  • Made In Usa: No
  • Type Of Tool: End Mill

Technical Overview

What It Does

Mills with 2 flutes. Used in end milling operations. Designed for Weldon 1.000 shank connection.

Composition

Made of steel. Has 2 flutes. Features SKS-2100-6.5-S100 specification.

Typical Uses

Used in milling machines. Fits Weldon 1.000 toolpost. Operates with 10.00 OAL.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Indexable Feed Mill
Made In USA No
Tool Material Steel
Machine Side (Toolpost) WELDON1.0000
Machine Side (Toolpost) Connection Type Weldon
Overall Length 10.0000 254.00MM
Shank Or Pilot Diameter 1.0000 25.40MM
Mach Side Connection Size 1.0000 25.40MM
Flutes Or Inserts 2
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Insert Style WD
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Positive
Insert Size (IC) 6
Depth Of Cut Max 0.0590
Insert Screw CSW-408H
