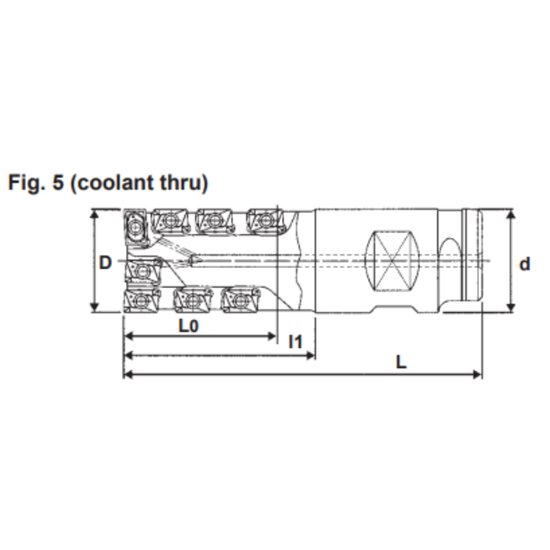

Picture of Dijet SEC-2200-5.0-N2NPowder Metal Milling Cutter 90.0°, Drill Mill 2.000 Cutter Diameter Putnam 2.000 Shank 9.500 OAL 12 Flute

Dijet SEC-2200-5.0-N2NPowder Metal Milling Cutter 90.0°, Drill Mill 2.000 Cutter Diameter Putnam 2.000 Shank 9.500 OAL 12 Flute

Part Number: DIJSEC-2200-5.0-N2NPM 2.000 x 2.000 x 5.000 x 9.500 ISO: SEC-2200-5.0-N2NPM ANSI:SEC-2200-5.0-N2NPM
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1004186
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

DIJET SEC-2200-5.0-N2NPM 90.0°, Drill Mill End Mill PUTNAM2.000 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Drill Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ZD, ZP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Screw DSW-4510H
Dimensions & Sizing
Overall Length 9.5000 241.30MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 12
Tool Dia 2.0000 50.80MM
Length Of Cut 5.0000 127.00MM
Insert Size Ic 18
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 5.0000
Materials & Finish
Tool Material Steel
