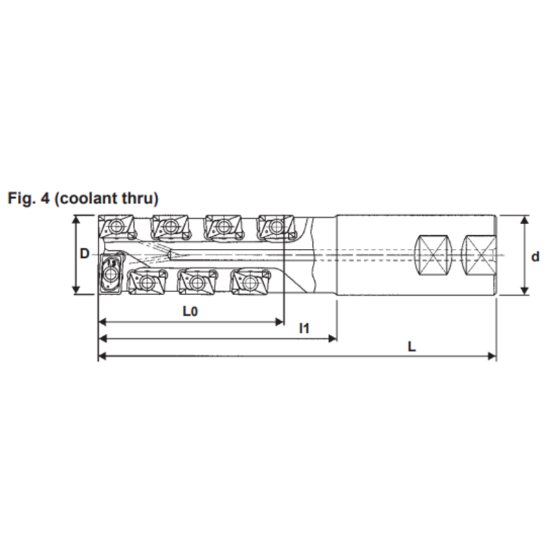

Picture of Dijet SEC-2150-4.5-S125 Milling Cutter 90.0°, Drill Mill 1.500 Cutter Diameter Weldon 1.500 Shank 8.500 OAL 10 Flute

Dijet SEC-2150-4.5-S125 Milling Cutter 90.0°, Drill Mill 1.500 Cutter Diameter Weldon 1.500 Shank 8.500 OAL 10 Flute

Part Number: DIJSEC-2150-4.5-S125 1.500 x 1.500 x 4.500 x 8.500 ISO: SEC-2150-4.5-S125 ANSI:SEC-2150-4.5-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004184
Vendor: Sussex Tool and Supply
$0.00
DIJET SEC-2150-4.5-S125 90.0°, Drill Mill Drill Mill Weldon 1.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA NO
Cutter Type Drill Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.5000 38.10MM
Overall Length 8.5000 215.90MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 10
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Drill Mill
Insert/Tool TOOL
Length Of Cut 4.5000 114.30MM
Insert Application Roughing, Semi Finishing
Insert Style ZD, ZP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 19
Depth Of Cut Max 4.5000
Insert Screw DSW-4510H
Cutting Edge Angle 90.0°
