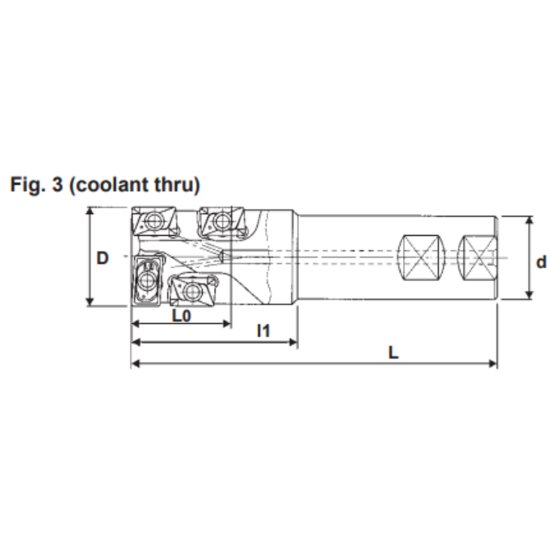

Picture of Dijet SEC-2150-2.5-S125 Milling Cutter 90.0°, Drill Mill 1.500 Cutter Diameter Weldon 1.250 Shank 6.500 OAL 6 Flute

Dijet SEC-2150-2.5-S125 Milling Cutter 90.0°, Drill Mill 1.500 Cutter Diameter Weldon 1.250 Shank 6.500 OAL 6 Flute

Part Number: DIJSEC-2150-2.5-S125 1.500 x 1.250 x 2.500 x 6.500 ISO: SEC-2150-2.5-S125 ANSI:SEC-2150-2.5-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004182
Vendor: Sussex Tool and Supply
$742.12
DIJET SEC-2150-2.5-S125 90.0°, Drill Mill End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA NO
Cutter Type Drill Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 6.5000 165.10MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 2.5000 63.50MM
Insert Application Roughing, Semi Finishing
Insert Style ZD, ZP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 19
Depth Of Cut Max 2.5000
Insert Screw DSW-4510H
Cutting Edge Angle 90.0°
