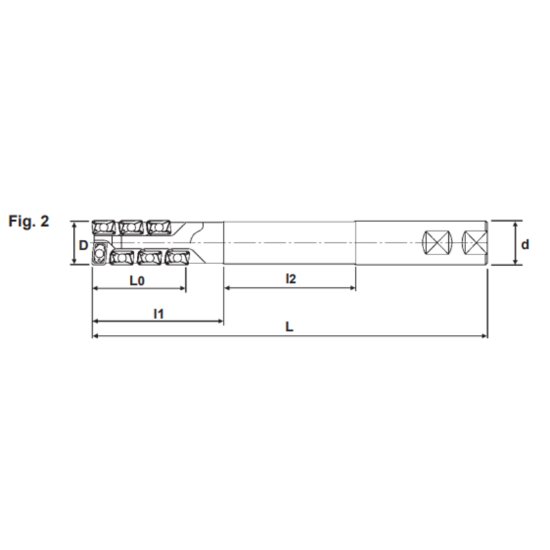

Picture of Dijet SEC-2125-2.0L-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 10.00 OAL 6 Flute

Dijet SEC-2125-2.0L-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 10.00 OAL 6 Flute

Part Number: DIJSEC-2125-2.0L-S125 1.250 x 1.250 x 2.000 x 10.000 ISO: SEC-2125-2.0L-S125 ANSI:SEC-2125-2.0L-S125
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1004178
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

DIJET SEC-2125-2.0L-S125 90.0°, Drill Mill End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Drill Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ZD, ZP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Screw TSW-408
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Tool Dia 1.2500 31.75MM - 1-1/4
Length Of Cut 2.0000 50.80MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 2.0000
Materials & Finish
Tool Material Steel
