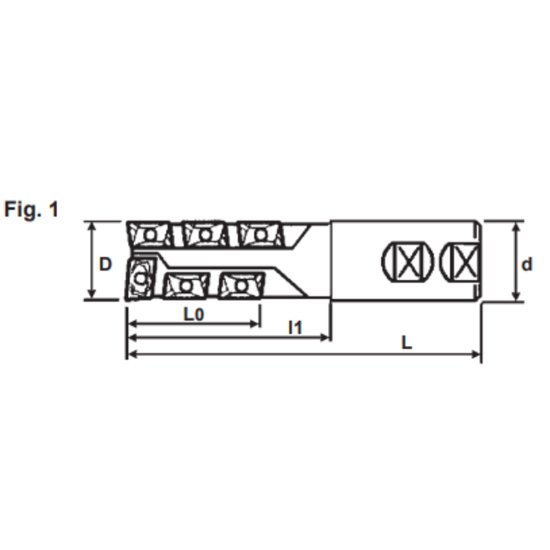

Picture of Dijet SEC-2100-3.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 6.000 OAL 10 Flute

Dijet SEC-2100-3.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 6.000 OAL 10 Flute

Part Number: DIJSEC-2100-3.0-S100 1.000 x 1.000 x 3.000 x 6.000 ISO: SEC-2100-3.0-S100 ANSI:SEC-2100-3.0-S100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004174
Vendor: Sussex Tool and Supply
$0.00
DIJET SEC-2100-3.0-S100 90.0°, Drill Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA NO
Cutter Type Drill Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 10
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Length Of Cut 3.0000 76.20MM
Insert Application Roughing, Semi Finishing
Insert Style ZD, ZP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Size Ic 13
Depth Of Cut Max 3.0000
Insert Screw DWS-307H
Cutting Edge Angle 90.0°
