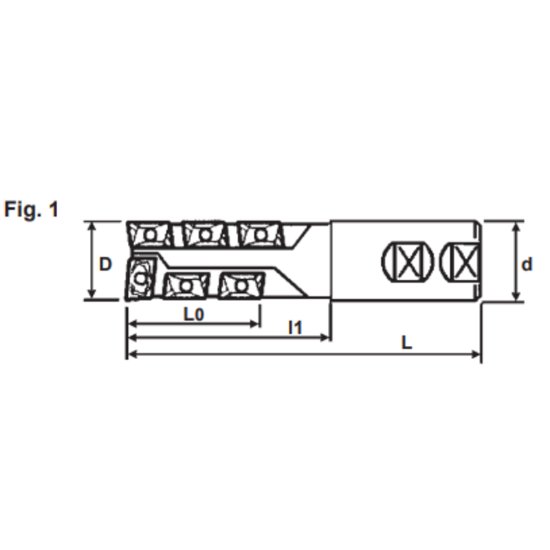

Picture of Dijet SEC-2100-2.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 5.000 OAL 7 Flute

Dijet SEC-2100-2.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 5.000 OAL 7 Flute

Part Number: DIJSEC-2100-2.0-S100 1.000 x 1.000 x 2.000 x 5.000 ISO: SEC-2100-2.0-S100 ANSI:SEC-2100-2.0-S100
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1004172
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

DIJET SEC-2100-2.0-S100 90.0°, Drill Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Drill Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style ZD, ZP
Insert Shape/Cutter Pocket Shape Other
Insert Type Positive
Insert Screw DWS-307H
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 7
Tool Dia 1.0000 25.40MM
Length Of Cut 2.0000 50.80MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Depth Of Cut Max 2.0000
Materials & Finish
Tool Material Steel
