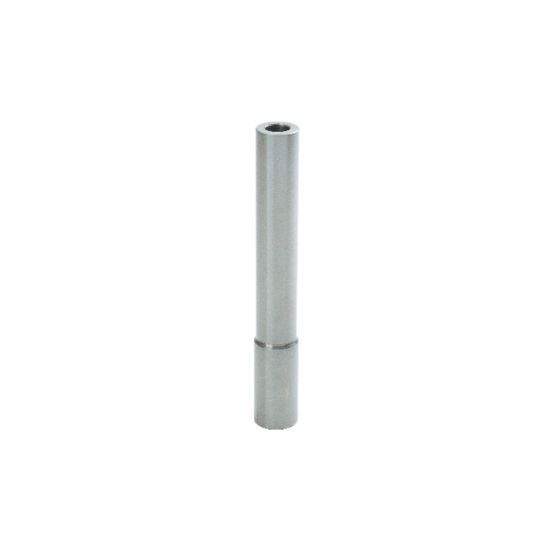

Picture of Dijet MSN-M16-77-S32C Shank 1.142 Cutter Diameter Round 1.259 Shank 6.181 OAL

Dijet MSN-M16-77-S32C Shank 1.142 Cutter Diameter Round 1.259 Shank 6.181 OAL

Part Number: DIJMSN-M16-77-S32C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1003504
Vendor: Sussex Tool and Supply
$1,084.31

Carbide end mill with 1.142 cutter diameter and 1.259 shank. Cylindrical connection 6.181 OAL. Made in USA: No. Shipping state: MICHIGAN.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Cylindrical
  • Machine Side (Toolpost): CYLINDRICAL1.2598

Grades & Coatings

  • Alternate Description: DIJET Shank 1.142 Cutter Diameter Round 1.259 Shank 6.181 OAL Flute MSN-M16-77-S32C MSN-M16-77-S32C

Other Details

  • Brand: DIJET
  • Shipping State: MICHIGAN
  • Made In Usa: No
  • Type Of Tool: End Mill

Technical Overview

What It Does

Cuts material with a round cutter diameter. Functions as an end mill in machining. Used in toolpost with cylindrical connection.

Composition

Carbide tool material. Cylindrical shank 1.259. Cutter diameter 1.142.

Typical Uses

Machining operations with cylindrical toolpost. Fits MSN-M16-77-S32C flute. Used in end mill applications.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Screw On Shank
Made In USA No
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL1.2598
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 6.1811 157.00MM
Shank Or Pilot Diameter 1.2598 32.00MM
Mach Side Connection Size 1.2598 32.00MM
Tool Diameter 1.1420 29.01MM
Type of Tool End Mill
Insert Or Tool Tool
Insert Application General Purpose
Neck Length 3.0315 77.00MM
Output Type Screw On Head
Part Side SCREWM16
Output Type.1 M16
Neck Diameter 1.1417
