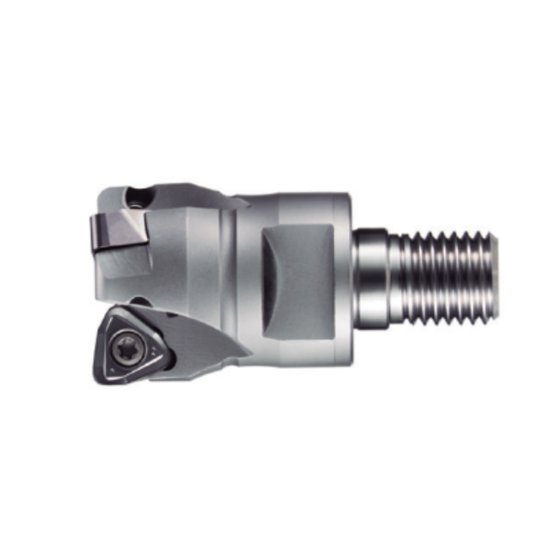

Picture of Dijet MEX-4040-SM-M16 Feed Mill,End Mill 1.575 Cutter Diameter Screw On M16 Shank 1.693 OAL 4 Flute

Dijet MEX-4040-SM-M16 Feed Mill,End Mill 1.575 Cutter Diameter Screw On M16 Shank 1.693 OAL 4 Flute

Part Number: DIJMEX-4040-SM-M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1003568
Vendor: Sussex Tool and Supply
$297.73

DIJET feed mill end mill with 1.575 cutter diameter. Screw on M16 shank, 1.693 OAL, 4 flute. Tool type: thread on. Machine side connection: screw on M16.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Screw On
  • Machine Side (Toolpost): SCREWM16

Grades & Coatings

  • Alternate Description: DIJET Feed Mill,End Mill 1.575 Cutter Diameter Screw On M16 Shank 1.693 OAL 4 Flute MEX-4040-SM-M16 MEX-4040-SM-M16

Other Details

  • Brand: DIJET
  • Shipping State: MICHIGAN
  • Made In Usa: No
  • Type Of Tool: Thread On

Technical Overview

What It Does

Provides cutting action with 1.575 cutter diameter. Functions as end mill with 4 flute design. Screw on M16 shank for machine tool mounting.

Composition

Made of steel. Features 1.575 cutter diameter. Includes M16 screw on shank.

Typical Uses

Used in milling operations. Mounted on machine tool with screw on M16. Operates with 1.693 OAL and 4 flute configuration.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Indexable Feed Mill
Made In USA No
Tool Material Steel
Machine Side (Toolpost) SCREWM16
Machine Side (Toolpost) Connection Type Screw On
Overall Length 1.6930 43.00MM
Mach Side Connection Size M16
Tool Diameter 1.5750 40.01MM
Flutes Or Inserts 4
Type of Tool Thread On
Insert Or Tool Tool
Insert Application Roughing
Insert Style WN
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Negative
Insert Size (IC) 7
Depth Of Cut Max 0.9800
Insert Screw TSW-410H
Max Ramp Angle 0.80°
