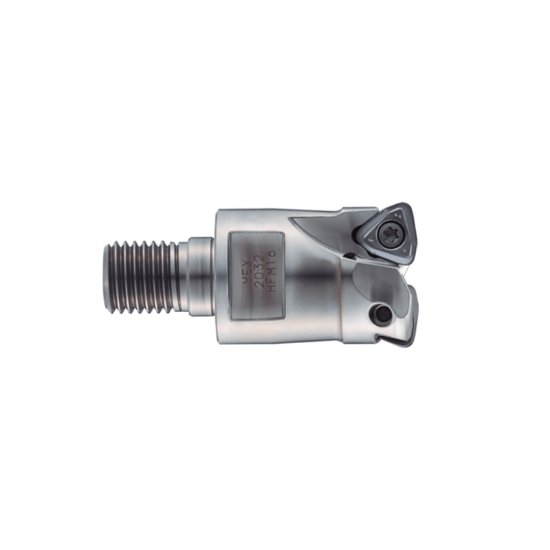

Picture of Dijet MEX-4040-HF-M16 Feed Mill,End Mill 1.575 Cutter Diameter Screw On M16 Shank 1.693 OAL 4 Flute

Dijet MEX-4040-HF-M16 Feed Mill,End Mill 1.575 Cutter Diameter Screw On M16 Shank 1.693 OAL 4 Flute

Part Number: DIJMEX-4040-HF-M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1003562
Vendor: Sussex Tool and Supply
$0.00

DIJET feed mill end mill with 1.575 cutter diameter. Screw on M16 shank, 1.693 OAL, 4 flute. Tool type: thread on. Machine side connection: screw on M16.

Key Details

Materials & Finish

  • Tool Material: Steel

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Screw On
  • Machine Side (Toolpost): SCREWM16

Grades & Coatings

  • Alternate Description: DIJET Feed Mill,End Mill 1.575 Cutter Diameter Screw On M16 Shank 1.693 OAL 4 Flute MEX-4040-HF-M16 MEX-4040-HF-M16

Other Details

  • Brand: DIJET
  • Shipping State: MICHIGAN
  • Made In Usa: No
  • Type Of Tool: Thread On

Technical Overview

What It Does

Provides cutting action with 1.575 cutter diameter. Designed for use in milling operations. Features 4 flute design for efficient material removal.

Composition

Made of steel. Includes screw on M16 shank. Cutter diameter is 1.575.

Typical Uses

Used in feed mill applications. Mounted via screw on M16 shank. Operated in machine toolpost with screw connection.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Indexable Feed Mill
Made In USA No
Tool Material Steel
Machine Side (Toolpost) SCREWM16
Machine Side (Toolpost) Connection Type Screw On
Overall Length 1.6930 43.00MM
Mach Side Connection Size M16
Tool Diameter 1.5750 40.01MM
Flutes Or Inserts 4
Type of Tool Thread On
Insert Or Tool Tool
Insert Application General Purpose
Insert Style WN
Insert Shape Or Cutter Pocket Shape Trigon
Insert Type Negative
Insert Size (IC) 7
Depth Of Cut Max 0.0790
Insert Screw TSW-410H
Max Ramp Angle 0.80°
