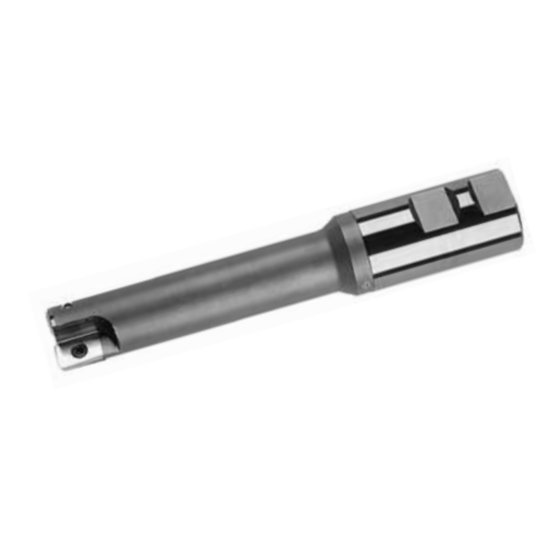

Picture of Dijet DBD-2100-S4.7-S125 Milling Cutter Backdraft 1.000 Cutter Diameter Weldon 1.250 Shank 7.000 OAL 2 Flute

Dijet DBD-2100-S4.7-S125 Milling Cutter Backdraft 1.000 Cutter Diameter Weldon 1.250 Shank 7.000 OAL 2 Flute

Part Number: DIJDBD-2100-S4.7-S125 ISO: DBD-2100-S4.7-S125 ANSI:DBD-2100-S4.7-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: 1004023
Vendor: Sussex Tool and Supply
$0.00
DIJET DBD-2100-S4.7-S125 Flat Blade Back Draft End Mill Weldon 1.2500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA NO
Cutter Type Back Draft
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Finishing, Semi Finishing
Insert Style DB
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Type Positive
Insert Size Ic 187
Neck Length 4.7200 119.89MM
Depth Of Cut Max 0.6560
Insert Screw ESW-407
