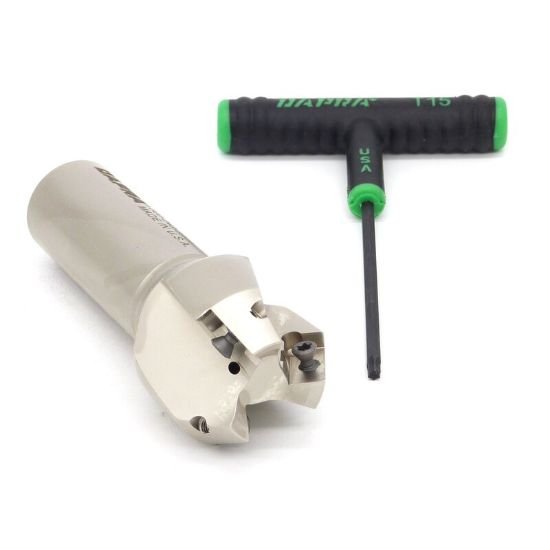

Picture of Dapra CMEM1000-30-R55-3 30.0°, Chamfer Mill 1.000 Cutter Diameter Weldon 1.000 Shank 4.000 OAL 3 Flute

Dapra CMEM1000-30-R55-3 30.0°, Chamfer Mill 1.000 Cutter Diameter Weldon 1.000 Shank 4.000 OAL 3 Flute

Part Number: DAP22280 ISO: CMEM1000-30-R55-3 ANSI:CMEM1000-30-R55-3
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1177490

Description

DAPRA 30.0°, Chamfer Mill 1.000 Cutter Diameter Weldon 1.000 Shank 4.000 OAL 3 Flute Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State CONNECTICUT
Made In USA YES
Cutter Type Chamfer Mill
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP, AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 16
Geometry & Angles
Cutting Edge Angle 30.0°
Materials & Finish
Tool Material Steel
