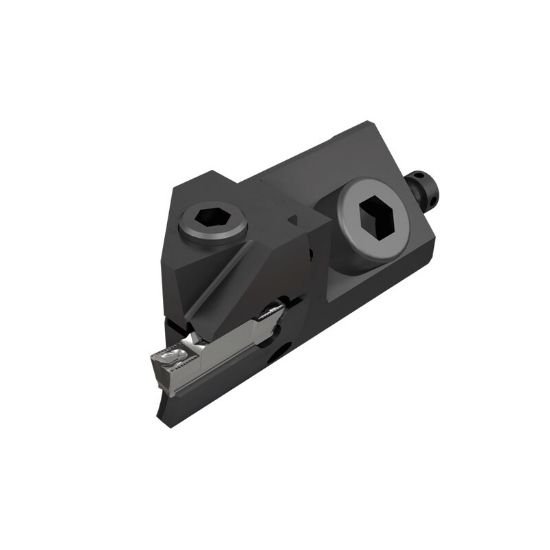

Picture of CR HFIR-16M Iscar 2500430 Face Grooving Cartridge 0.1570 3.99mm Wide 0.7874 20.00mm Shank

CR HFIR-16M Iscar 2500430 Face Grooving Cartridge 0.1570 3.99mm Wide 0.7874 20.00mm Shank

Part Number: ISC2500430 ISO: CR HFIR-16M ANSI:CR HFIR-16M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1085656
Vendor: Sussex Tool and Supply
$263.52

Description

ISCAR 2500430 Dog Bone Face Grooving Stick Tool0.7874 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Cartridge
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style HF, DG, GR
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Hand Right Hand
Inter/Extern External
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Overall Length 2.6380 67.01MM
Shank/Pilot Dia 0.7874 20.00MM
Insert Size Ic 3, 5, 4
Cutting Width 0.1570 3.99MM
Tool Width 0.6300
Performance & Capacity
Depth Of Cut Max 0.1970
Materials & Finish
Tool Material Steel
