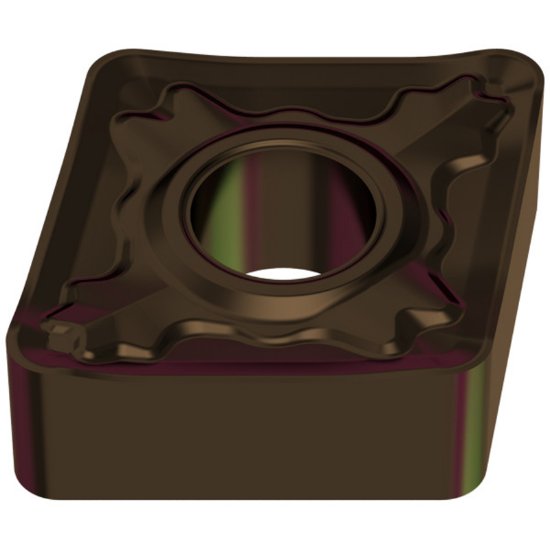

Picture of CNMM544EN-R28CTCP135 Ceratizit CNMM160616EN-R28CTCP135 80.0° Negative Carbide 0.0630 1.60mm Radius Roughing

CNMM544EN-R28CTCP135 Ceratizit CNMM160616EN-R28CTCP135 80.0° Negative Carbide 0.0630 1.60mm Radius Roughing

Part Number: CER11827253

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CERATIZIT
SKU: 1001661
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

CERATIZIT turning insert with TiCN Al2O3 coating 80 degree negative angle 0.0630 radius. Coating is TiCN + Al2O3. Grade is CTCP135. Application is roughing.

Key Details

Materials & Finish

  • Coating: TiCN + Al2O3
  • Grade: CTCP135

Grades & Coatings

  • Alternate Description: CERATIZIT CNMM160616EN-R28CTCP135 80.0° Turning Insert TiCN + Al2O3 CNMM160616EN-R28CTCP135 CNMM544EN-R28CTCP135

Other Details

  • Brand: CERATIZIT
  • Shipping State: MICHIGAN
  • Made In Usa: No

Technical Overview

What It Does

Used for roughing with 80.0° negative carbide cutting edge. Performs turning operations with 1.60mm radius. Suitable for CNMM160616EN-R28CTCP135 insert type.

Composition

TiCN + Al2O3 coating on carbide grade CTCP135.

Typical Uses

Roughing in turning operations. Applied on CNMM544EN-R28CTCP135 insert. Used with 80.0° negative carbide edge.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiCN + Al2O3
Insert Or Tool Insert
Insert Application Roughing
Corner Radius 0.0630 1.60MM
Insert Style CN
Insert Shape Or Cutter Pocket Shape 80.0°
Insert Type Negative
Insert Size (IC) 16 "54"
Grade CTCP135
Insert Fits 80.0°
