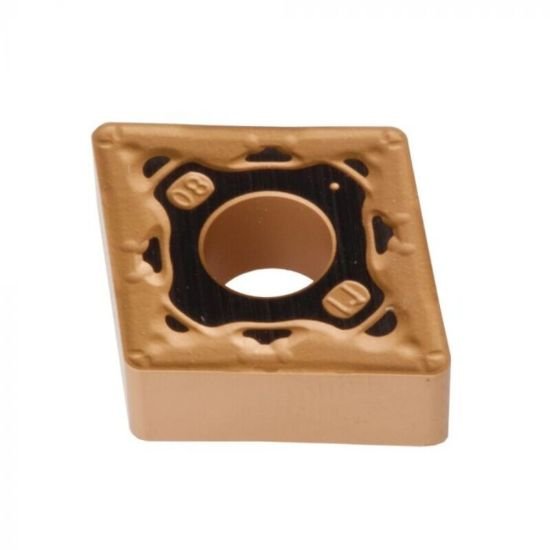

Picture of CNMG643-PEM-DPC15HT Dorian CNMG190612-PEM-DPC15HT 80.0° Negative Carbide 0.0460 1.17mm Radius Medium, Semi Finishing

CNMG643-PEM-DPC15HT Dorian CNMG190612-PEM-DPC15HT 80.0° Negative Carbide 0.0460 1.17mm Radius Medium, Semi Finishing

Part Number: DOR69409 ISO: CNMG190612-PEM-DPC15HT ANSI:CNMG643-PEM-DPC15HT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: 1038829
Vendor: Sussex Tool and Supply
$21.70
This product has a minimum quantity of 10
DORIAN CNMG190612-PEM-DPC15HT 80.0 ° Negative Insert For finishing turning applications at a high SFM. Use inserts to cut Steel and Stainless Steel. Inserts have hard wear and abrasive resistance substrate with a CVD Al2O3/TiCl2O3/TiCNcoating. Not for interrupted cuts.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel
Coating Al2O3 + TiCN + Al2O3 + TiCN
Insert/Tool INSERT
Cut Type Medium, Semi Finishing
Corner Radius 0.0460 1.17MM
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Grade DPC15HT
Insert Type Negative
Insert Size Ic 19 "64"
Insert Fits 80.0°
Hand Neutral
