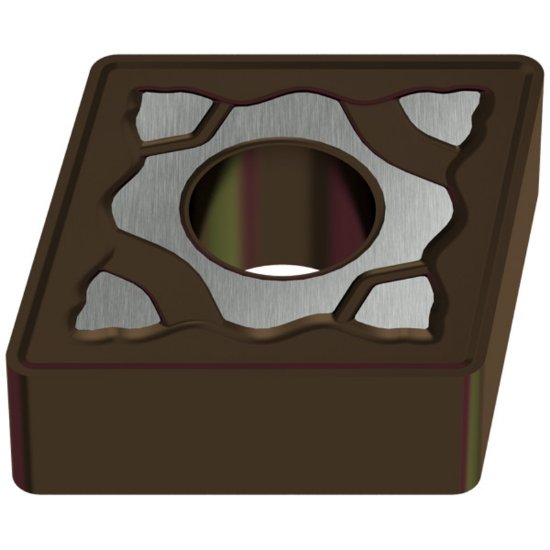

Picture of CNMG544EN-M70CTCP135 Ceratizit CNMG160616EN-M70CTCP135 80.0° Negative Carbide 0.0630 1.60mm Radius Medium, Semi Finishing

CNMG544EN-M70CTCP135 Ceratizit CNMG160616EN-M70CTCP135 80.0° Negative Carbide 0.0630 1.60mm Radius Medium, Semi Finishing

Part Number: CER11827324

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CERATIZIT
SKU: 1001579
Vendor: Sussex Tool and Supply
$0.00
This product has a minimum quantity of 10

CERATIZIT turning insert with TiCN and Al2O3 coating grade CTCP135. 0.0630 mm radius, medium semi finishing. Made in USA: No. Shipping state: MICHIGAN.

Key Details

Materials & Finish

  • Coating: TiCN + Al2O3
  • Grade: CTCP135

Grades & Coatings

  • Alternate Description: CERATIZIT CNMG160616EN-M70CTCP135 80.0° Turning Insert TiCN + Al2O3 CNMG160616EN-M70CTCP135 CNMG544EN-M70CTCP135

Other Details

  • Brand: CERATIZIT
  • Shipping State: MICHIGAN
  • Made In Usa: No

Technical Overview

What It Does

Used for semi finishing on turning operations. Features 80.0° negative carbide angle. Suitable for medium radius cutting with TiCN + Al2O3 coating.

Composition

Carbide grade CTCP135 with TiCN + Al2O3 coating. Made from CNMG544EN-M70CTCP135 material. 1.60mm radius, medium size insert.

Typical Uses

Semi finishing on turning operations. Applied in machining with 80.0° negative angle. Used with medium radius cutting tools in CNC turning.

Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Cutter Type Insert
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Coating TiCN + Al2O3
Insert Or Tool Insert
Insert Application Medium, Semi Finishing
Corner Radius 0.0630 1.60MM
Insert Style CN
Insert Shape Or Cutter Pocket Shape 80.0°
Insert Type Negative
Insert Size (IC) 16 "54"
Grade CTCP135
Insert Fits 80.0°
