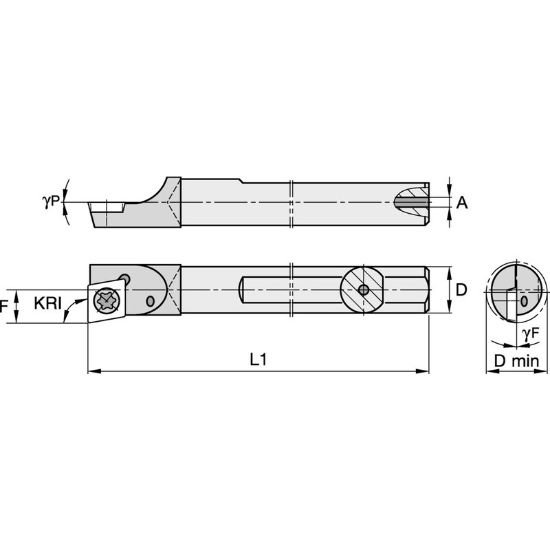

Picture of CCBM51000R Widia/Kennametal CCBM51000R 80.0° Positive General Purpose

CCBM51000R Widia/Kennametal CCBM51000R 80.0° Positive General Purpose

Part Number: WID2831801

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1001975
Vendor: Sussex Tool and Supply
$16.79

Carbide boring bar with 80 degree positive profile. General purpose tool with BBAR0.1969 machine connection. Made by WIDIA/KENNAMETAL. Tool post connection type is boring bar.

Key Details

Materials & Finish

  • Tool Material: Carbide

Thread & Fittings

  • Machine Side (Toolpost) Connection Type: Boring Bar
  • Machine Side (Toolpost): BBAR0.1969

Grades & Coatings

  • Alternate Description: WIDIA 2831801 80.0° Boring Bar Dia0.1969 Positive CCBM51000R CCBM51000R

Other Details

  • Brand: WIDIA/KENNAMETAL
  • Shipping State: PENNSYLVANIA
  • Made In Usa: No
  • Type Of Tool: Boring Bar

Technical Overview

What It Does

Provides positive general purpose boring function. Designed for machine side toolpost connection. Used in boring operations with specified diameter.

Composition

Carbide tool material. WIDIA/KENNAMETAL brand. CCBM51000R model.

Typical Uses

Boring bar application in machine tools. Fits BBAR0.1969 toolpost. Operates at 80.0° angle.

Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Cutter Type Boring Bar
Made In USA No
Tool Material Carbide
Machine Side (Toolpost) BBAR0.1969
Machine Side (Toolpost) Connection Type Boring Bar
Overall Length 3.9600 100.58MM
Shank Or Pilot Diameter 0.1969 5.00MM
Coolant Thru Thru Coolant
Mach Side Connection Size 0.1969 5.00MM
Flutes Or Inserts 1
Type of Tool Boring Bar
Insert Or Tool Tool
Insert Application General Purpose
Insert Style CD
Insert Shape Or Cutter Pocket Shape 80.0°
Insert Type Positive
Insert Size (IC) S4
Hand Right Hand
Inter Or Extern Internal
Min Bore 0.2340
Lead Angle 90°
Lead Angle & Clearance Angle Combined 90° Lead Angle
