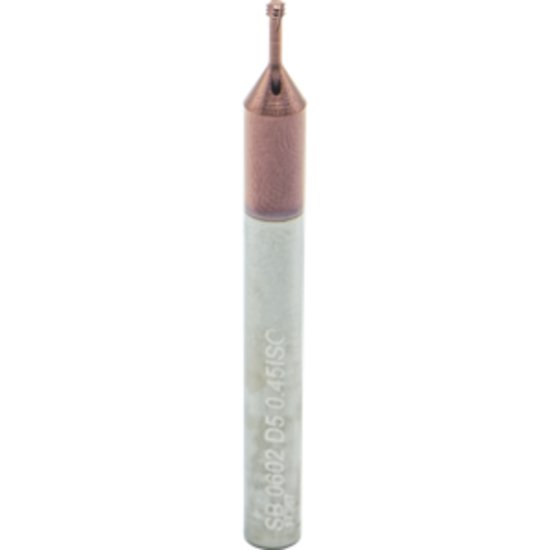

Picture of Carmex MTSB 0602 D5 0.45 ISO Thread Mill 0.07 Dia 0.45mm 0.22 Neck 2.30 OAL 4 Flute 2xD1 Internal AlTiN

Carmex MTSB 0602 D5 0.45 ISO Thread Mill 0.07 Dia 0.45mm 0.22 Neck 2.30 OAL 4 Flute 2xD1 Internal AlTiN

Part Number: CAR40300441

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CARMEX
SKU: 1293991
Vendor: Sussex Tool and Supply
$0.00
CARMEX Carbide Thread Mill 0.07 Dia 0.45MM 0.22 Neck 2.30 OAL 4 Flute No Coolant 2xD1 Internal AlTiN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State WISCONSIN
Made In USA NO
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <50HRC, Stainless, High Temp, Iron
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.3000 58.42MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 4
Tool Dia 0.0770 1.96MM
Type Of Tool Thread Mill
Performance Rating High Performance
Length Of Cut 0.1540 3.91MM
Grade MT7
Dia Deep 2.0x Dia
Thread Pitch 0.45MM
Thread Type METRIC
Inter/Extern Internal
Neck Length 0.2200 5.59MM
Thread Size M2.5
