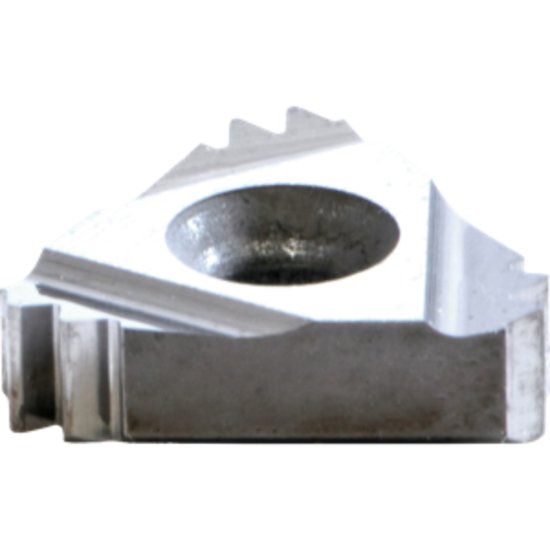

Picture of Carmex 22IR11W2MK20 Threading Insert 11.00TPI Whitworth BSW/BSF/BSP Internal Right ISO 22

Carmex 22IR11W2MK20 Threading Insert 11.00TPI Whitworth BSW/BSF/BSP Internal Right ISO 22

Part Number: CAR20501473 ISO: 22IR11W2MK20 ANSI:22IR11W2MK20
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$32.33
This product has a minimum quantity of 10
SKU: 1022466

Description

CARMEX 20501473 Threading Insert 11.00TPI Whitworth BSW/BSF/BSP Internal Right ISO 22 Carbide grade for non ferrous metals, aluminum and cast iron
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern Internal
Full Or Partial Profile Full Profile
Dimensions & Sizing
Insert Size Ic 22
Thread Pitch 11.00TPI
Threed Teeth 2
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Grade K20
Compatibility & Fit
Insert Fits ISO Thread
