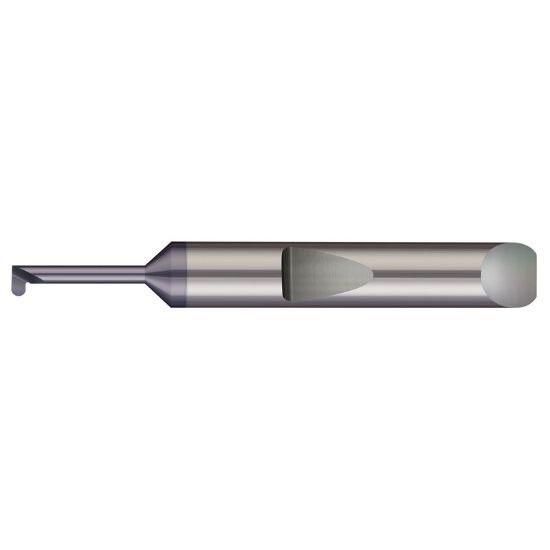

Picture of Carbide Grooving Min Bore 0.12 Micro 100 QMFR-030-750-120X Solid Tool Grooving 0.0150 0.38mm Radius 0.1875 4.76mm - 3/16 Shank

Carbide Grooving Min Bore 0.12 Micro 100 QMFR-030-750-120X Solid Tool Grooving 0.0150 0.38mm Radius 0.1875 4.76mm - 3/16 Shank

Part Number: MICQMFR-030-750-120X ISO: QMFR-030-750-120X ANSI:QMFR-030-750-120X
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1100853
Vendor: Sussex Tool and Supply
$47.25

Description

MICRO 100 QMFR-030-750-120X Solid Tool Boring Bar MICRO187 Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid Tool Full Radius
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Inter/Extern Internal
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Neck Length 0.0400 1.02MM
Tool Over Hang 0.7500
Centerline Off Set 0.08
Geometry & Angles
Corner Radius 0.0150 0.38MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Min Bore 0.1200
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
