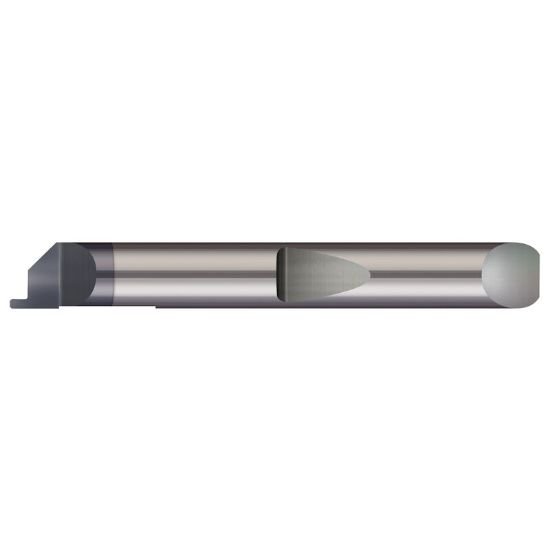

Picture of Carbide Face Grooving Min Bore 0.197 Micro 100 QFGC3-187-030-050X Solid Tool 0.0030 0.08mm Radius 0.1875 4.76mm - 3/16 Shank

Carbide Face Grooving Min Bore 0.197 Micro 100 QFGC3-187-030-050X Solid Tool 0.0030 0.08mm Radius 0.1875 4.76mm - 3/16 Shank

Part Number: MICQFGC3-187-030-050X ISO: QFGC3-187-030-050X ANSI:QFGC3-187-030-050X
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1101032
Vendor: Sussex Tool and Supply
$36.65

Description

MICRO 100 QFGC3-187-030-050X Solid Tool Boring Bar MICRO187 Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA YES
Cutter Type Solid Tool
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Inter/Extern Internal
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Tool Over Hang 0.5000
Centerline Off Set 0.093
Geometry & Angles
Corner Radius 0.0030 0.08MM
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Min Bore 0.1970
Face Groove Min Dia 0.1970
Face Groove Max Dia 0.5000
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
