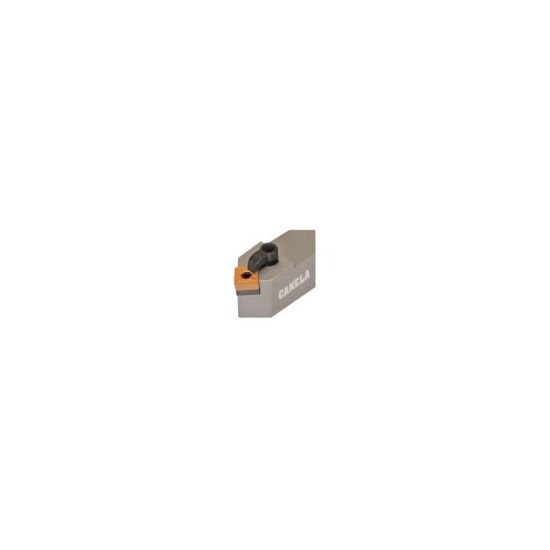

Picture of Canela Tool MSDNN083A Turning Stick Tool Square 0.500 Shank 4.00 OAL

Canela Tool MSDNN083A Turning Stick Tool Square 0.500 Shank 4.00 OAL

Part Number: CANMSDNN083A ISO: MSDNN083A ANSI:MSDNN083A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034451
Vendor: Sussex Tool and Supply
$79.20

Description

CANELA TOOL MSDNN083A Square Stick Tool0.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-36
Clamp/Wedge CL-6
Seat/Nest ISSN-322
Seat Screw NL-34
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 09 "32"
Geometry & Angles
Lead Angle 45°
Lead Angle & Clearance Angle Combined 45° Lead Angle 40.0° Clearance Angle
Clearance Angle 40.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
