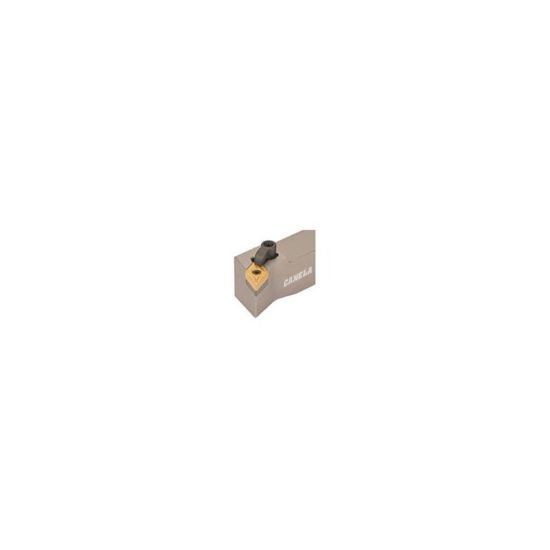

Picture of Canela Tool MDQNR244E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

Canela Tool MDQNR244E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

Part Number: CANMDQNR244E ISO: MDQNR244E ANSI:MDQNR244E
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$213.50
SKU: 1034426

Description

CANELA TOOL MDQNR244E 55.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-48
Clamp/Wedge CL-20
Seat/Nest IDSN-432
Seat Screw NL-46
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 107.5°
Lead Angle & Clearance Angle Combined 107.5° Lead Angle 16.0° Clearance Angle
Clearance Angle 16.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
