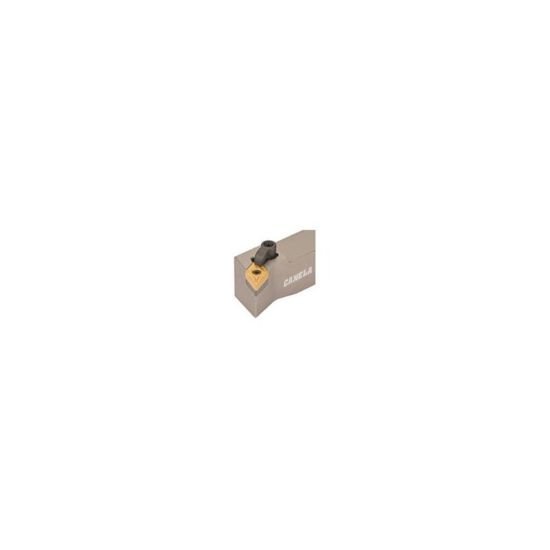

Picture of Canela Tool MDQNR204D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

Canela Tool MDQNR204D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

Part Number: CANMDQNR204D ISO: MDQNR204D ANSI:MDQNR204D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034425
Vendor: Sussex Tool and Supply
$167.90

Description

CANELA TOOL MDQNR204D 55.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-48
Clamp/Wedge CL-20
Seat/Nest IDSN-432
Seat Screw NL-46
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 107.5°
Lead Angle & Clearance Angle Combined 107.5° Lead Angle 16.0° Clearance Angle
Clearance Angle 16.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
