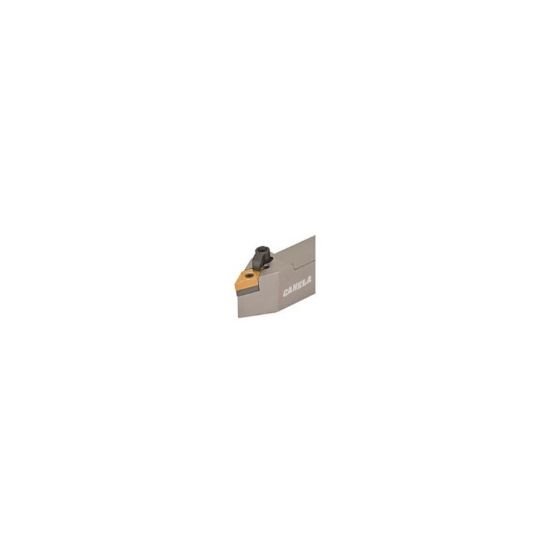

Picture of Canela Tool MDPNN855D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

Canela Tool MDPNN855D Turning Stick Tool 55.0° 1.250 Shank 6.00 OAL

Part Number: CANMDPNN855D ISO: MDPNN855D ANSI:MDPNN855D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034417
Vendor: Sussex Tool and Supply
$188.00

Description

CANELA TOOL MDPNN855D 55.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-510
Clamp/Wedge CL-12
Seat/Nest IDSN-533
Seat Screw NL-58
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 19 "54"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
