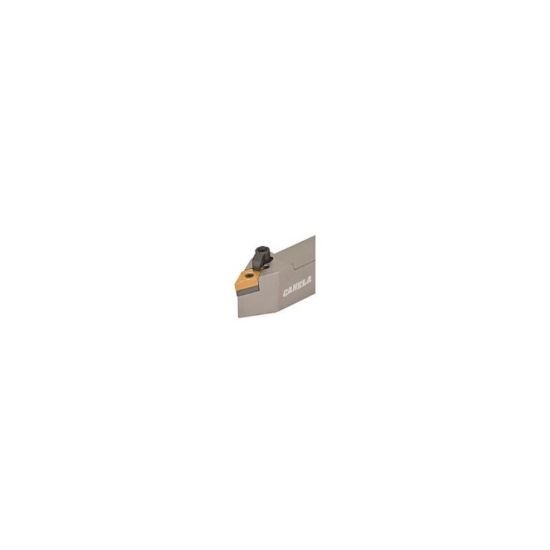

Picture of Canela Tool MDPNN245E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

Canela Tool MDPNN245E Turning Stick Tool 55.0° 1.500 Shank 7.00 OAL

Part Number: CANMDPNN245E ISO: MDPNN245E ANSI:MDPNN245E
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034416
Vendor: Sussex Tool and Supply
$213.50

Description

CANELA TOOL MDPNN245E 55.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-510
Clamp/Wedge CL-12
Seat/Nest IDSN-533
Seat Screw NL-58
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 19 "54"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
