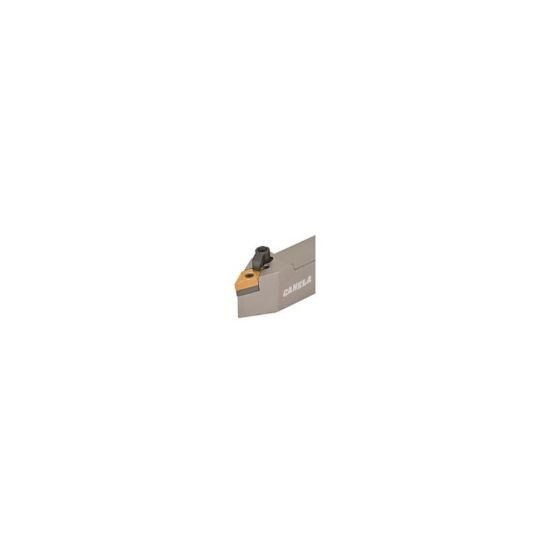

Picture of Canela Tool MDPNN124B Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

Canela Tool MDPNN124B Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

Part Number: CANMDPNN124B ISO: MDPNN124B ANSI:MDPNN124B
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034411
Vendor: Sussex Tool and Supply
$148.50

Description

CANELA TOOL MDPNN124B 55.0 ° Stick Tool0.7500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-48
Clamp/Wedge CL-22
Seat/Nest IDSN-432
Seat Screw NL-46
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
