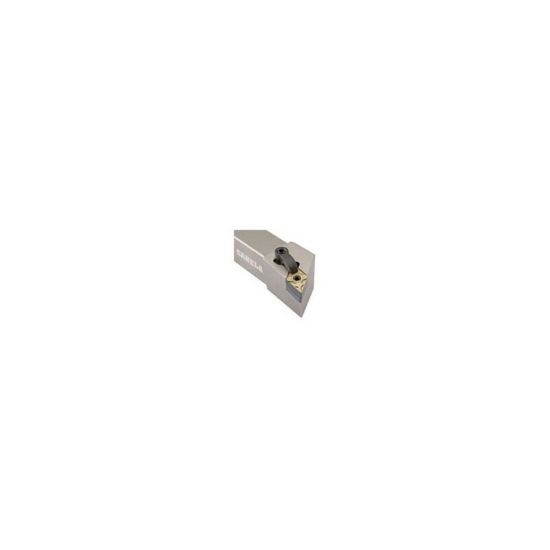

Picture of Canela Tool MDJNL103B Turning Stick Tool 55.0° 0.625 Shank 4.50 OAL

Canela Tool MDJNL103B Turning Stick Tool 55.0° 0.625 Shank 4.50 OAL

Part Number: CANMDJNL103B ISO: MDJNL103B ANSI:MDJNL103B
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034390
Vendor: Sussex Tool and Supply
$138.30

Description

CANELA TOOL MDJNL103B 55.0 ° Stick Tool0.6250 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-36
Clamp/Wedge CL-7
Seat Screw NL-33L
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
