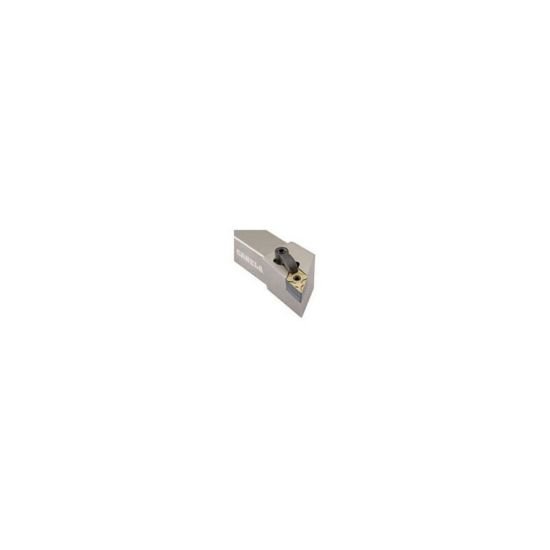

Picture of Canela Tool MDJNL083A Turning Stick Tool 55.0° 0.500 Shank 4.00 OAL

Canela Tool MDJNL083A Turning Stick Tool 55.0° 0.500 Shank 4.00 OAL

Part Number: CANMDJNL083A ISO: MDJNL083A ANSI:MDJNL083A
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034389
Vendor: Sussex Tool and Supply
$131.70

Description

CANELA TOOL MDJNL083A 55.0 ° Stick Tool0.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw XNS-36
Clamp/Wedge CL-7
Seat Screw NL-33L
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 11 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
