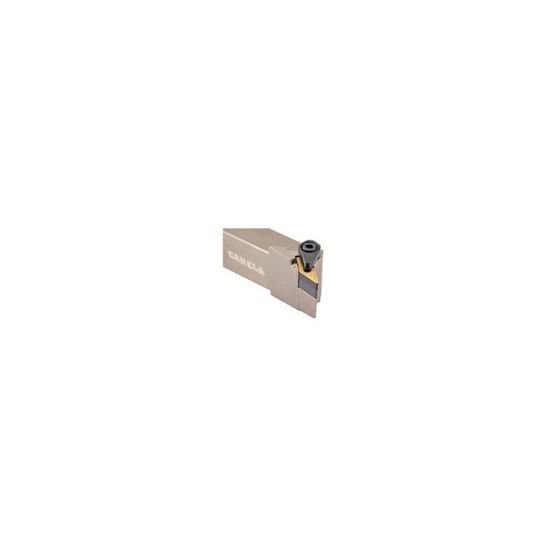

Picture of Canela Tool DVJNL243EAN Turning Stick Tool 35.0° 1.500 Shank 7.00 OAL

Canela Tool DVJNL243EAN Turning Stick Tool 35.0° 1.500 Shank 7.00 OAL

Part Number: CANDVJNL243EAN ISO: DVJNL243EAN ANSI:DVJNL243EAN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034266
Vendor: Sussex Tool and Supply
$300.90

Description

CANELA TOOL DVJNL243EAN 35.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Inter/Extern External
Clamp Screw 1695
Clamp/Wedge 2708
Seat/Nest IVSN-322
Seat Screw 1764
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 44.0° Clearance Angle
Clearance Angle 44.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
