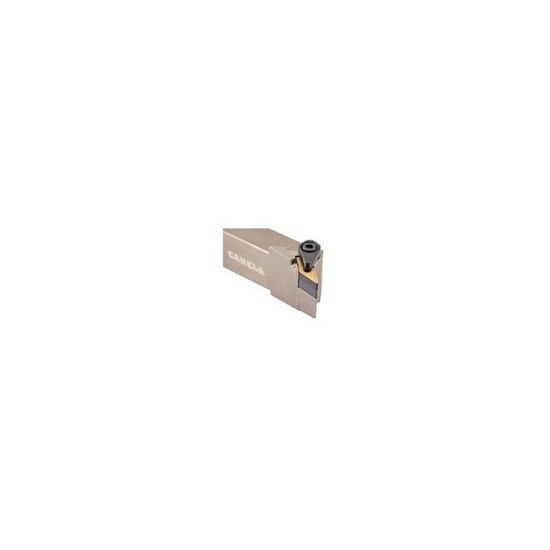

Picture of Canela Tool DVJNL203DAN Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

Canela Tool DVJNL203DAN Turning Stick Tool 35.0° 1.250 Shank 6.00 OAL

Part Number: CANDVJNL203DAN ISO: DVJNL203DAN ANSI:DVJNL203DAN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034265
Vendor: Sussex Tool and Supply
$281.30

Description

CANELA TOOL DVJNL203DAN 35.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Inter/Extern External
Clamp Screw 1695
Clamp/Wedge 2708
Seat/Nest IVSN-322
Seat Screw 1764
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 44.0° Clearance Angle
Clearance Angle 44.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
