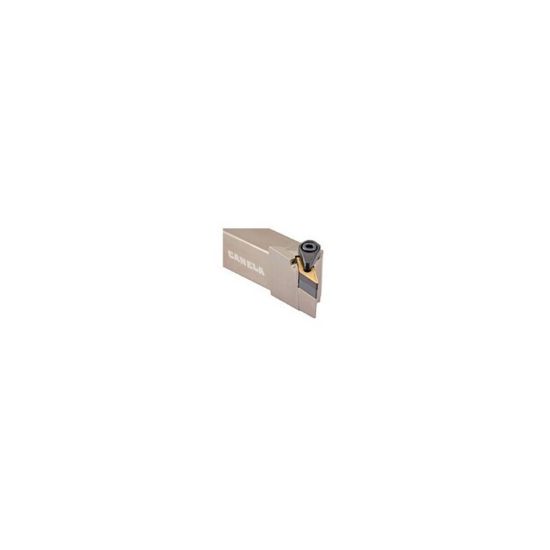

Picture of CANELA TOOL DVJNL123BAN Turning Stick Tool 35.0° 0.750 Shank 4.50 OAL

CANELA TOOL DVJNL123BAN Turning Stick Tool 35.0° 0.750 Shank 4.50 OAL

ANSI: DVJNL123BAN

ISO: DVJNL123BAN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: CANELA TOOL
SKU: CANDVJNL123BAN
Delivery date: 3-5 days
$316.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Michigain
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Application Ext.Turning
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Lead Angle 93°
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Clearance Angle 44.0°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 16 "33"
Machine Side STICK TOOL0.7500
Cutting & Machining Properties
Insert Style VN
Seat/Nest IVSN-322
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Fasteners & Connectors
Clamp Screw 1695
Seat Screw 1764
Clamp/Wedge 2708
