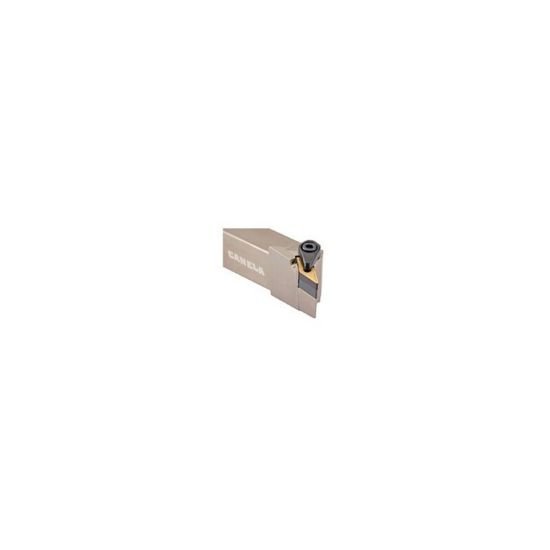

Picture of Canela Tool DVJNL123BAN Turning Stick Tool 35.0° 0.750 Shank 4.50 OAL

Canela Tool DVJNL123BAN Turning Stick Tool 35.0° 0.750 Shank 4.50 OAL

Part Number: CANDVJNL123BAN ISO: DVJNL123BAN ANSI:DVJNL123BAN
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$249.20
SKU: 1034263

Description

CANELA TOOL DVJNL123BAN 35.0 ° Stick Tool0.7500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Inter/Extern External
Clamp Screw 1695
Clamp/Wedge 2708
Seat/Nest IVSN-322
Seat Screw 1764
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 44.0° Clearance Angle
Clearance Angle 44.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
