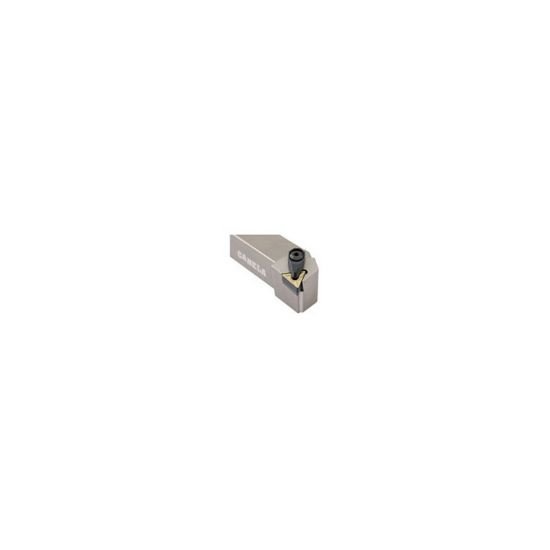

Picture of Canela Tool DTGNL163DN Turning Stick Tool Triangle 1.000 Shank 6.00 OAL

Canela Tool DTGNL163DN Turning Stick Tool Triangle 1.000 Shank 6.00 OAL

Part Number: CANDTGNL163DN ISO: DTGNL163DN ANSI:DTGNL163DN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034246
Vendor: Sussex Tool and Supply
$106.20

Description

CANELA TOOL DTGNL163DN Triangle Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Inter/Extern External
Clamp Screw 1695
Clamp/Wedge 2708
Seat/Nest ITSN-342
Seat Screw 1764
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 91°
Lead Angle & Clearance Angle Combined 91° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Triangle
