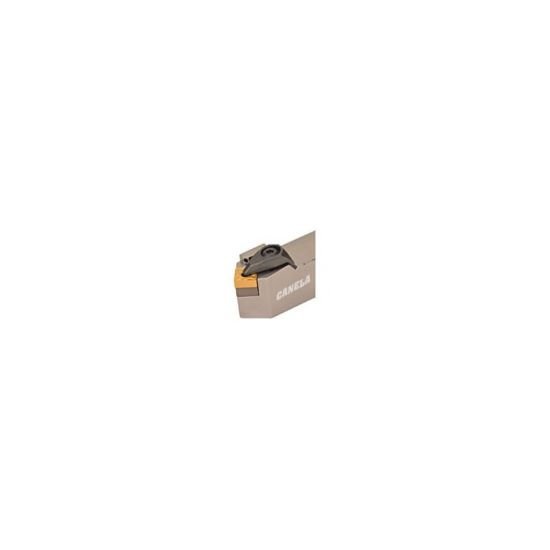

Picture of Canela Tool DSDNN205DAN Turning Stick Tool Square 1.250 Shank 6.00 OAL

Canela Tool DSDNN205DAN Turning Stick Tool Square 1.250 Shank 6.00 OAL

Part Number: CANDSDNN205DAN ISO: DSDNN205DAN ANSI:DSDNN205DAN
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034224
Vendor: Sussex Tool and Supply
$204.20

Description

CANELA TOOL DSDNN205DAN Square Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Inter/Extern External
Clamp Screw 1696
Clamp/Wedge 2716
Seat/Nest ISSN-533
Seat Screw 1768
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16 "54"
Geometry & Angles
Lead Angle 45°
Lead Angle & Clearance Angle Combined 45° Lead Angle 40.0° Clearance Angle
Clearance Angle 40.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
