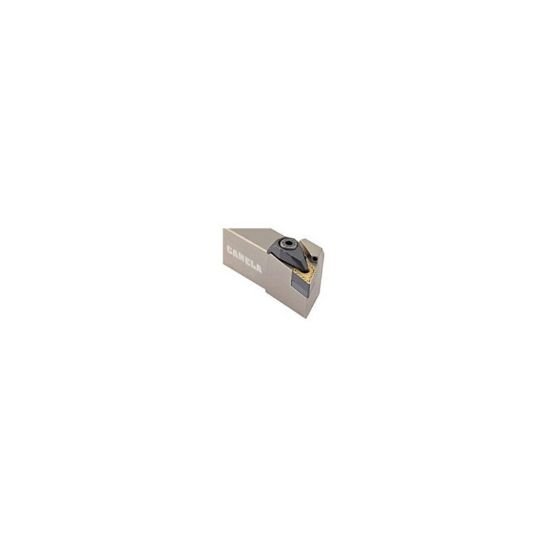

Picture of Canela Tool DDJNL124BAN Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

Canela Tool DDJNL124BAN Turning Stick Tool 55.0° 0.750 Shank 4.50 OAL

Part Number: CANDDJNL124BAN ISO: DDJNL124BAN ANSI:DDJNL124BAN
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1034206
Vendor: Sussex Tool and Supply
$236.40

Description

CANELA TOOL DDJNL124BAN 55.0 ° Stick Tool0.7500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MICHIGAN
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Inter/Extern External
Clamp Screw 1696
Clamp/Wedge 2712
Seat/Nest IDSN-442
Seat Screw 1766
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
