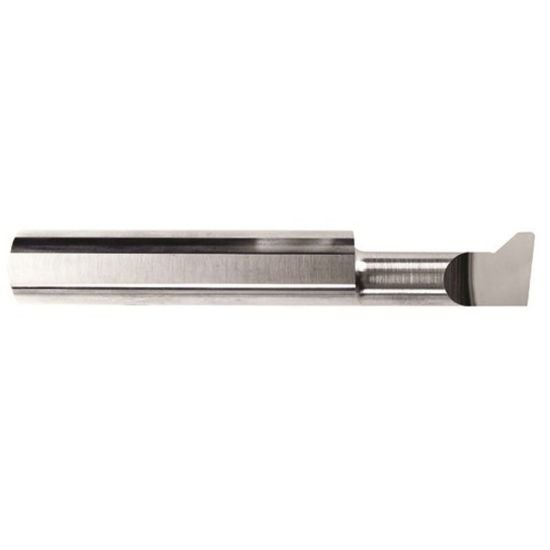

Picture of BBC-500-1000 .500 X 1.000 Bore & BK Cham Internal Tool 55-1150-C Solid Tool Boring, Back Chamfer 0.1100 2.79mm Wide 0.0300 0.76mm Radius 0.5000 12.70mm - 1/2 Shank

BBC-500-1000 .500 X 1.000 Bore & BK Cham Internal Tool 55-1150-C Solid Tool Boring, Back Chamfer 0.1100 2.79mm Wide 0.0300 0.76mm Radius 0.5000 12.70mm - 1/2 Shank

Part Number: INT55-1150-C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$139.34
SKU: 1098058

Description

INTERNAL TOOL 55-1150-C BBC-500-1000 .500 X 1.000 BORE & BACK CHAMFER TOOL Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid Tool
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type Finishing, Semi Finishing
Inter/Extern Internal
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting Width 0.1100 2.79MM
Geometry & Angles
Corner Radius 0.0300 0.76MM
Performance & Capacity
Min Bore 0.5000
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
