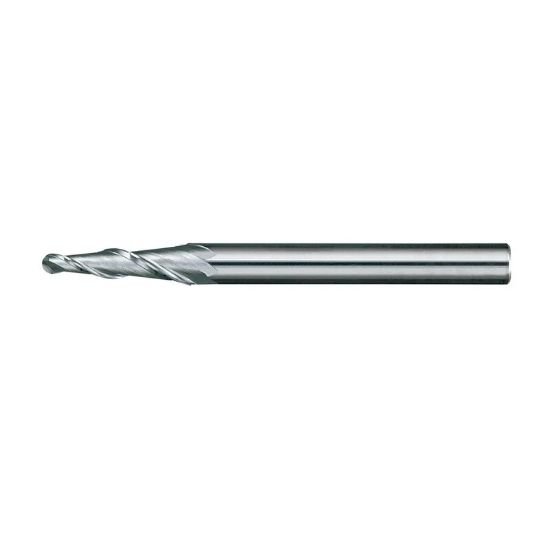

Picture of Award BX-103-CBTIALN Dia 3/32 SH 0.50 LOC 0.7500 OAL3.00 End Mill Taper Flute Carbide TiAlN Single End Ball NoseBall

Award BX-103-CBTIALN Dia 3/32 SH 0.50 LOC 0.7500 OAL3.00 End Mill Taper Flute Carbide TiAlN Single End Ball NoseBall

Part Number: AWABX-103-CBTIALN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AWARD
SKU: 1187198
Vendor: Sussex Tool and Supply
$1,107.90
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.5000 12.70MM - 1/2
Cutter Type Solid End Mill
Length Type STANDARD
Performance Rating General Performance
Center Cutting Non Center Cutting
Overall Length 3.0000 76.20MM
Machine Side (Toolpost) CYLINDRICAL0.5000
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Ball Nose
Cutter Style Taper Flute Ball Finisher
Inch Or Metric Inch
Machine Side (Toolpost) Connection Type Cylindrical
Flutes Or Inserts 3
Taper Angle 25.0°
Shipping State MICHIGAN
Family Group AWARD
Single Or Double End Single End
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size 0.5000 12.70MM - 1/2
Coating TiAlN
Tool Diameter 0.0938 2.38MM - 3/32
Coolant Thru Non Coolant
Cut Diameter Max 0.9600 24.38MM
Helix Angle 30°
Made In USA YES
Taper Or Straight Flute Taper Flute
