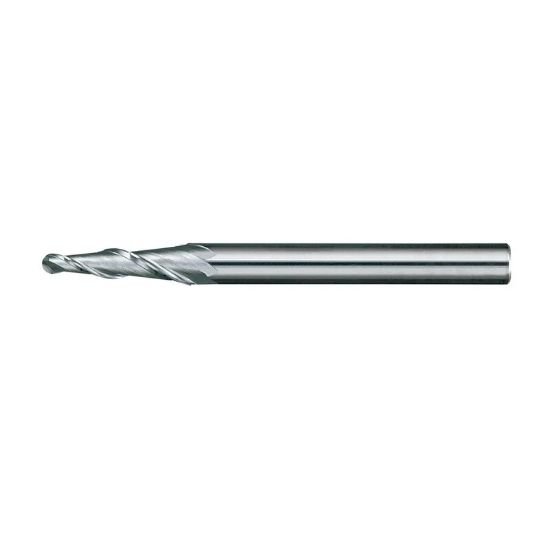

Picture of Award BTL-106-CBTIALN Dia 3/32 SH 0.6250 LOC 1.50 OAL4.00 End Mill Taper Flute Carbide TiAlN Single End Ball NoseBall

Award BTL-106-CBTIALN Dia 3/32 SH 0.6250 LOC 1.50 OAL4.00 End Mill Taper Flute Carbide TiAlN Single End Ball NoseBall

Part Number: AWABTL-106-CBTIALN 0.094 x 0.625 x 1.500 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AWARD
SKU: 1187124
Vendor: Sussex Tool and Supply
$1,212.70
AWARD BTL-106-CBTIALN End Mill 12.0° Taper Flute Ball Finisher Carbide 1.5000 38.10MM LOC 3 Flute Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
Shipping State MICHIGAN
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.0938 2.38MM - 3/32
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Ball Nose
Cutter Style Taper Flute Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Non Center Cutting
Taper/Straight Flute Taper Flute
Cut Dia Max 0.7315 18.58MM
Taper Angle 12.0°
