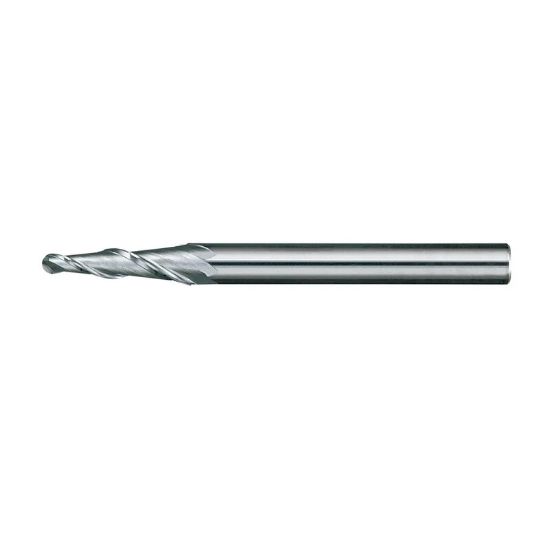

AWARD BR-824TIN DIA 1/2 SH 1.2500 LOC 6.00 OAL8.50 End Mill Taper Flute HSS TiN Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AWARD
SKU: AWABR-824TIN
Delivery date: 3-5 days
$737.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#17, Material#15, Material#3
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Ball Nose
Application Face Milling, Profile Milling, Taper Side Milling, Copy Milling
Shipping State Michigain
Package Size 1
Coating TiN
Additional Key Information 3 Taper Flute
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Dimension Description 0.500 x 1.250 x 6.000 x 8.500
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Ball Nose
Taper Flute Yes
Cut Dia Max 1.9734 50.12MM
Machine Side CYLINDRICAL1.2500
Overall Len 8.5000 215.90MM
Helix Angle 30°
Cutter Style Taper Flute Ball Finisher
Tool Material High Speed Steel
Flutes/Inserts 4
Length Of Cut 6.0000 152.40MM
Length Type Standard
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 1.2500 31.75MM
Taper Angle 7.0°
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Center Cutting No
Industry-Specific Applications
Mold Yes
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
