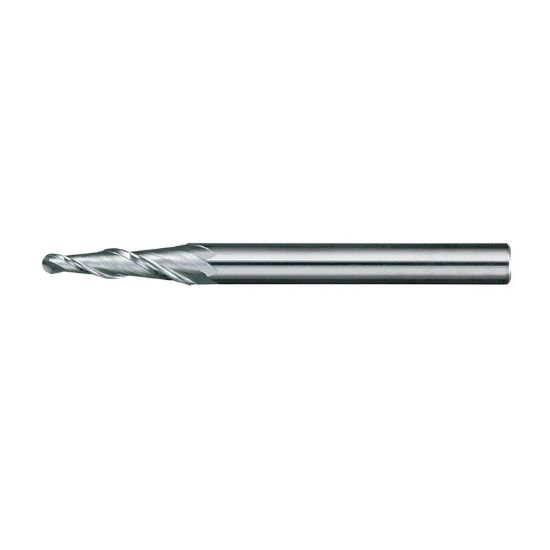

AWARD BM0-105-COTIN DIA 3/32 SH 0.1875 LOC 1.2500 OAL2.50 End Mill Taper Flute Carbide TiN Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AWARD
SKU: AWABM0-105-COTIN
Delivery date: 3-5 days
$462.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Profile Milling, Taper Side Milling
Shipping State Michigain
Package Size 1
Material # Material#17, Material#15, Material#10, Material#20, Material#3, Material#8
Additional Key Information 2 Ball Nose
Additional Key Information 3 Taper Flute
Sold by Pieces 1
Additional Key Information 1 End Mill
Performance Rating General Performance
Coating TiN
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Dia Max 0.1156 2.94MM
Machine Side CYLINDRICAL0.1875
Single/Double End Single End
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Cutter Dia 0.0938 2.38MM - 3/32
Machine Side Connection Size 0.1875 4.76MM
Dimension Description 0.094 x 0.188 x 1.250 x 2.500
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Flute Yes
Helix Angle 30°
Cutter Style Taper Flute Ball Finisher
Overall Len 2.5000 63.50MM
Length Of Cut 1.2500 31.75MM
Taper Angle 0.5°
Cutting & Machining Properties
Coolant Thru No
Center Cutting No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
