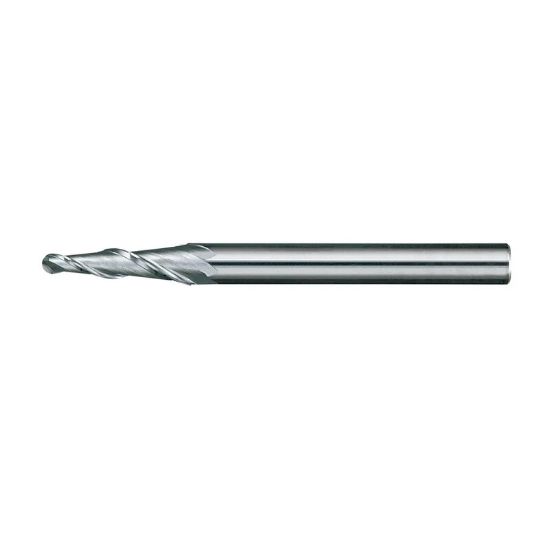

AWARD BL-204TIN DIA 1/8 SH 0.3750 LOC 1.00 OAL2.8750 End Mill Taper Flute HSS TiN Single End Ball NoseBall

Need Assistance or Service? Please call 262-251-4020

Manufacturer: AWARD
SKU: AWABL-204TIN
Delivery date: 3-5 days
$498.57
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Taper Side Milling, Copy Milling
Shipping State Michigain
Material # Material#17, Material#20, Material#15, Material#3
Additional Key Information 1 End Mill
Coating TiN
Sold by Pieces 1
Additional Key Information 3 Taper Flute
Performance Rating General Performance
Additional Key Information 2 Ball Nose
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Single/Double End Single End
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron
Taper Flute Yes
Tool Material High Speed Steel
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Style Taper Flute Ball Finisher
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Taper Angle 2.0°
Dimension Description 0.125 x 0.375 x 1.000 x 2.875
Cut Dia Max 0.1948 4.95MM
Machine Side CYLINDRICAL0.3750
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 2.8750 73.03MM
Inch/Metric Inch
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat HSS
Center Cutting No
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
